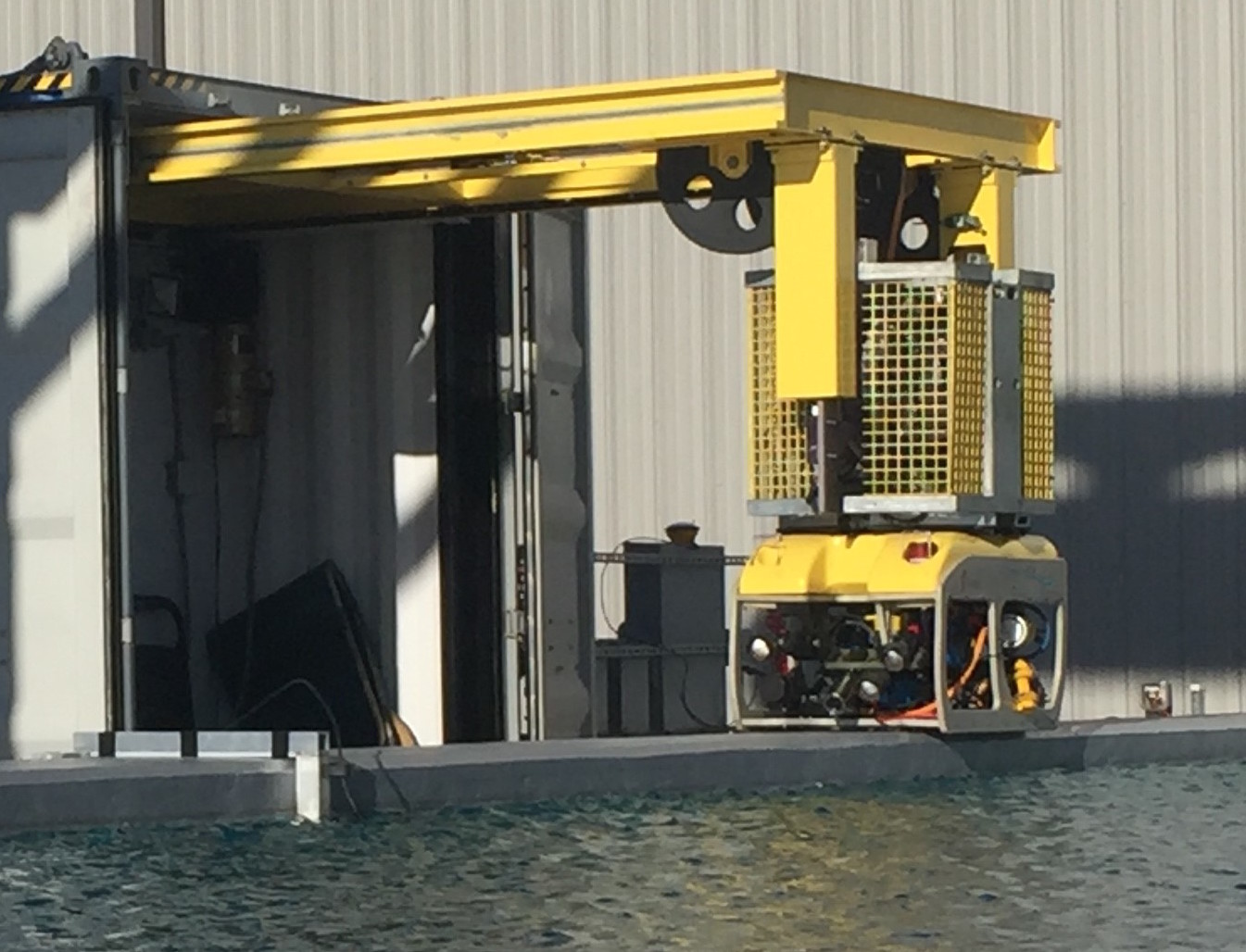

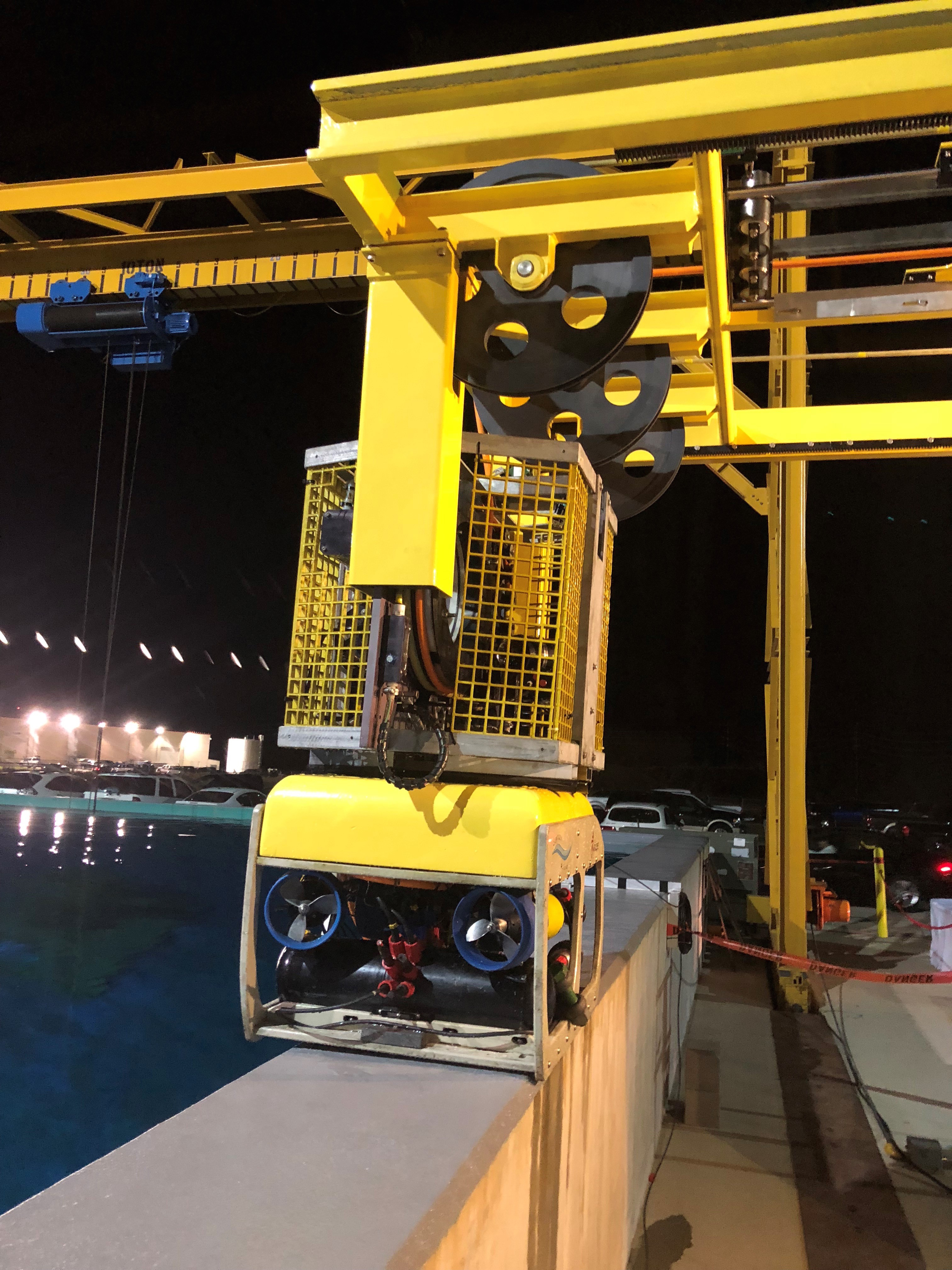

The Apache ROV is currently configured in a Contain-a-LARS, a radically new patented all electric deployment system developed by WT Industries, in Houston, TX, for the offshore and inland ROV markets. However, the system can easily be converted to a smaller fly-away package for use on smaller vessels of opportunity or other situations where space is limited.
SPECIFICATIONS
Depth Rating: 1,000m (3,281 ft.)
Payload: 30kg (66.2 lbs.)
Height: 620mm (24.4 in.)
Length: 900mm (35.4 in.)
Width: 700mm (27.6 in.)
Mass in Air: 140kg (308.7 lbs.)
Propulsion:
(2) Off Axial Horizontal Thrusters
(1) Vertical Thruster
(1) Lateral Thruster
Performance Bollard Thrust:
Forward: 490N (110 lbs.)
Reverse: 390N (87 lbs.)
Lateral: 290N (65 lbs.)
Vertical: 290N (65 lbs.)
Power Requirements: 7.6 kVA @440V AC 50/60 Hz
Lighting: (3) 220V AC (Up to 500W Dimmers)
Cameras: (1) OE 1366 Color Zoom (1) OE 1324 SIT
Sonar: Imagenex 881a Scanning Sonar
Optional Tooling:
(4) Function Manipulator
Rotating Wire Brush
High Pressure Water Jet
Rope Cutter
CP Probe
Industry Standard Cameras (i.e.; Aries)
High Definition Sonar Systems
Profiling Sonar
Side Scan Sonar
Bathymetric & Oceanographic Sensors
